Memosens CPS72E - digital ORP sensor for aggressive and poisoning media

Digital ORP sensor
Memosens CPS72E

Memosens 2.0 ORP electrode for chemical processes and poisoning media

CPS72E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

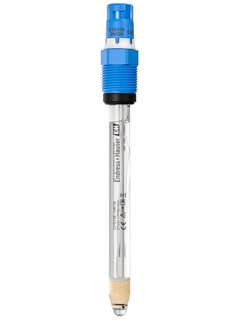

Memosens CPS72E - digital ORP sensor for aggressive and poisoning media
  • F
  • L
  • E
  • X
©Endress+Hauser

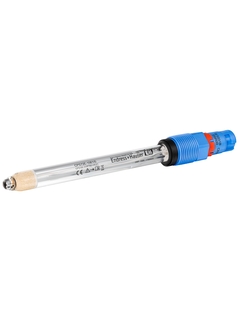

Memosens CPS72E - Version for hazardous areas
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    –1 500 to 1 500 mV

  • Process temperature

    0 to 140 °C (32 to 284 °F)

  • Process pressure

    0.8 to 14 bar (11.6 to 203 psi) (absolute)

Field of application

Memosens CPS72E is the digital specialist for demanding processes. Its unique, contamination-resistant reference guarantees stable measurement in poisoning media but also in media with low conductivity. Thanks to Memosens 2.0 digital technology, CPS72E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance and IIoT services.

Processes in chemical industry and monitoring of processes with:

  • Quickly changing ORP values

  • High proportion of electrode poisons such as H2S

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Benefits

  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

  • The sensor resists strong acids and bases and high organic loads.

  • Its unique ion trap prevents poisoning of the junction and reference, ensuring a long sensor lifetime.

  • Non-contact, inductive signal transmission maximizes process safety.

  • Reduced process downtime and extended sensor lifetime minimize operating costs.

Videos

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
