Name: Thermocouple TC88
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

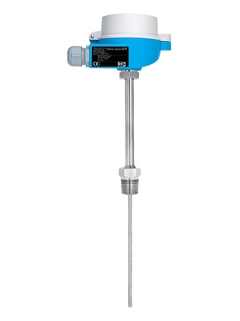

Product picture of TC thermometer TC88 in application

Predecessor

Omnigrad S TSC288

Successor

F

L

E

X
iTHERM ModuLine TM131

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

metric style
modular temperature assembly
universal range of application
suitable for hazardous areas
suitable for high process pressures
threaded process connection
with neck
to use with thermowell
Thermowell / protection tube

to use with thermowell
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

Insert Diameter
3,0 mm (0,12'')
6,0 mm (0,24'')
Max. immersion length on request

up to 30.000,00 mm (1.181,10'')
Material protection tube/ thermowell

1.4404 (316L)
1.4571 (316Ti)
Alloy 600
Optional coating

Not defined
Process connection

male thread:
G1/2"
NPT1/2"
M14x1.5
M18x1.5
Tip shape

straight
Surface roughness Ra

0,8 μm (31,5 μin.)
Operating temperature range

Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 800 °C
(max. 1.472 °F)
Max. process pressure (static)

at 20 °C: 500 bar (7.252 psi)
Accuracy

class 1 acc. to IEC 60584
Response time

depending on configuration
t50 = 1 s
t90 = 2 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX II
NEPSI
IECEx
NEPSI
EAC Ex
Certification

Gost Metrology
SIL (transmitter only)

Filter

32 documents

Technical Information (TI)

Technical information, TC88 Omnigrad S (valid from 2005 to 2012)

Technical Information (TI)

English version - 02/2010

New version available in English

Modular TC assembly, extension neck and threaded connection for
installation in an
existing thermowell

Select other languages, versions and see details Hide selection and details
