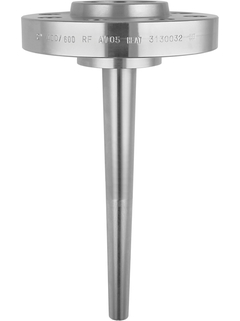

Product picture Vanstone thermowell TT511

TT511
Barstock thermowell Vanstone design

Metric thermowell for applications in the oil & gas industry

TT511

Compare

Product variant Vanstone thermowell TT511 — Shell standard

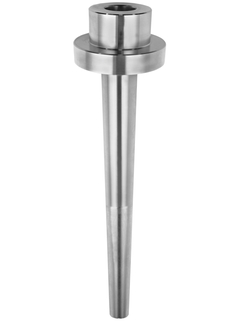

Product picture Vanstone thermowell TT511 global — Shell global standard acc. S.38.113 rev.D and S.38.114 rev.D

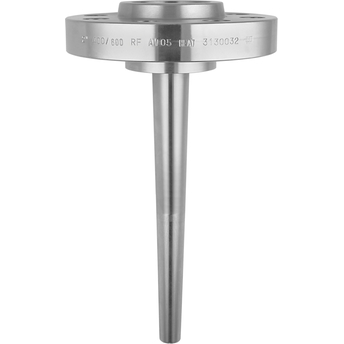

Shell global standard with flange

Specs at a glance

Max. process pressure (static)

depending on process connection up to 2500 lbs
Maximum standard immersion length

500 mm (19,69")
Max. immersion length on request

500 mm (19,69")

See all specifications

Field of application

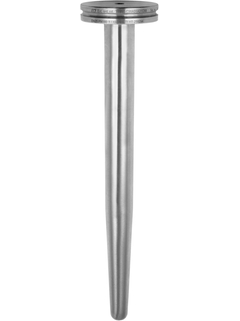

It is a specially designed thermowell for thermometer installation. The thermowell shaft and the process connection flange are not interconnected. For installation, the collar of the thermowell is fitted between two flanges; on the one hand it is fitted onto the thermowell and on the other hand it is bolted to the connection nozzle on the process side. Many different flange versions are available to secure the unit to the permanently installed nozzle flange. It is machined from solid bar stock.

The thermowell will be used in applications with high process requirements. The predominant industries are Oil & Gas and Petrochemical. The process connection flange is not welded on the thermowell stem but designed as collar flange. This special Vanstone thermowell design enables a wide variety of applications and is suitable for resistance and thermocouple thermometers.

Benefits

Solid thermowell, made of drilled bar stock material.
Fulfillment of various, industry specific requirements with a standard product. Flexible selection of immersion length and thermowell geometry according to the process specifications.
In accordance with Shell specification: S.38.113 rev.D and S.38.114 rev.D
Exact thermowell stress calculation ensuring safe plant operation.
Vanstone design with outstanding cost effectiveness:
Reuse of the flange if the thermowell has to be replaced, flexible selection of the flange material as well as reduced spare parts and storing concept.
