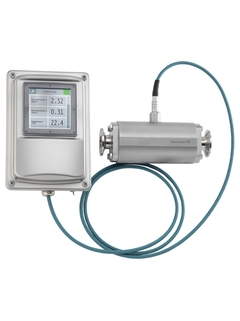

Picture of concentration measuring device Teqwave H for liquid analysis in hygienic applications

Teqwave H – Ultrasonic concentration meter

Inline device with best-in-class hygienic design – plug and play for food and beverage processes

D9HB

Compare

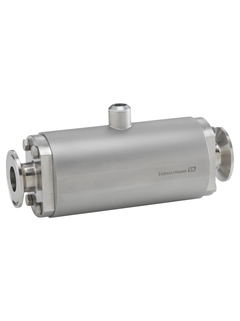

Picture of concentration measuring device Teqwave H sensor with Tri-Clamp connections — Teqwave H sensor with with Tri-Clamp connections

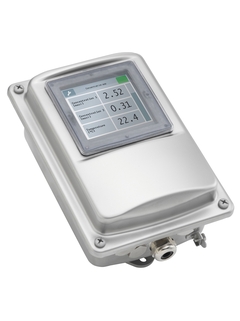

Picture of concentration measuring device Teqwave H transmitter with stainless steel housing — Teqwave H transmitter with stainless steel protective housing

Teqwave H – Concentration measuring device for real-time liquid analysis in hygienic applications

Specs at a glance

Max. measurement error

Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: 2m/s
Measuring range

Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature, maximum 0 to +100 °C (32 to +212 °F)
Acoustic density 0.7 to 1.5 g/cm³
Medium temperature range

0 to 120°C (32 to 248 °F)
Process temperature

0 to 120°C (32 to 248 °F)
Max. process pressure

max. 16 bar at 20 °C (232 psi at 68 °F)
Process pressure

max. 16 bar at 20 °C (232 psi at 68 °F)

See all specifications

Field of application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. End customers and equipment manufacturers value its highly accurate in situ concentration measurement and hygienic design. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs by flexible definition and extension of your application range.

The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Continuous quality monitoring of beverages and in cleaning processes

Device properties

Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP

Benefits

High accuracy and repeatability – concentration calculation with latest algorithms
Fulfilment of hygienic requirements – easily cleanable full-bore sensor
Full transparency – constant monitoring of product quality without sampling
Highest process safety – reliable metering due to robust, maintenance-free sensor
Customized usage – innovative application concept, expendable for changing measuring tasks
Simplified process control – user-friendly operation and clear status visualization
Local data backup – integrated data storage for measured values up to 7,5 years
