PA pressure cylinder (manually only): Max. 80 °C (176 °F) Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)
Process pressure
PA pressure cylinder: Max. 6 bar (87 psi) Stainless steel pressure cylinder: Max. 10 bar (145 psi) Pneumatic outlet safety seal: 6 bar at 100 °C (87 psi at 212 °F)

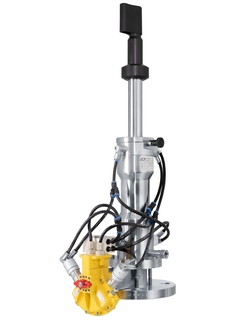

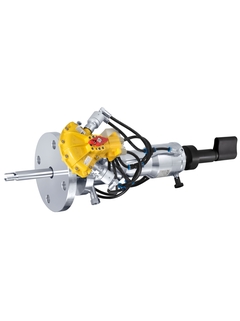

The Cleanfit CPA473 retractable assembly is designed for application in fibrous or sticky media. Its patented sleeve seals and integrated scrapers make sure that nothing sticks to the sensor. Cleanfit offers highest operating comfort: You can replace sensors and even service the assembly while the process is running. The optional electric or pneumatic control system enables automated cleaning and calibration even in difficult processes.
Cleanfit CPA473 is intended for use in tanks and pipes in:
Chemical industry
Paper industry
Wastewater / industrial water
Power plants
Refuse incinerators
It is suitable to be used with pressures of up to 10 bar (stainless steel cylinder) or 6 bar (PA cylinder).
Benefits
Safe and reliable separation from the process by ball valve, even under harsh conditions
No process interruption for electrode cleaning and calibration – saves maintenance time and costs
Extended operating life of electrodes due to automatic cleaning
Suitable for application in sticky and fibrous media thanks to integrated scraper and sleeve seals
Flexible adaptation to all applications by great variety of materials and process connections
Efficient component cleaning is an important part of the production of industrially manufactured components. Borer Chemie AG therefore relies on the concentration measurement with Teqwave F, I and T.
The measurement of interface in thickeners is done manually, while the turbidity measurement is done by obtaining samples sent to the laboratory. With Endress+Hauser there is an automated solution.
The safety and operating comfort of an analytical measuring point starts with using the right assembly. Our flexible assembly production ensures that you get the right assembly for your needs.
Chemical industry, paper industry, wastewater, industrial water, power plants, refuse incinerators, sugar industry
Installation
Retractable assembly with ball valve
Characteristic
Open and closed tank, piping (min DN80)
Design
Manual or pneumatical Manual or pneumatical ball valve Can be fully automated with CPC30 / 300 Integrated rinse chamber with connection G 1/4" or NPT 1/4"
Immersion depth: 61 to 235mm (2.4 inch to 9.25 inch)
Process temperature
PA pressure cylinder (manually only): Max. 80 °C (176 °F) Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)
Process pressure
PA pressure cylinder: Max. 6 bar (87 psi) Stainless steel pressure cylinder: Max. 10 bar (145 psi) Pneumatic outlet safety seal: 6 bar at 100 °C (87 psi at 212 °F)
Connection
G1¼ internal thread, DN50, DN65, ANSI 2"
Additional certifications
3.1. acc. to EN 10204
Measuring principle
Sensor ORP / Redox
Application
Chemical industry, paper industry, wastewater, industrial water, power plants, refuse incinerators, sugar industry
Installation
Retractable holder with ball valve
Characteristic
Open and closed tank, piping (min DN80)
Design
Manual or pneumatical Manual or pneumatical ball valve Can be fully automated with CPC30 / 300 Integrated rinse chamber with connection G 1/4" or NPT 1/4"
Immersion depth: 61 to 235mm (2.4 inch to 9.25 inch)
Process temperature
PA pressure cylinder (manually only): Max. 80 °C (176 °F) Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)
Process pressure
PA pressure cylinder: Max. 6 bar (87 psi) Stainless steel pressure cylinder: Max. 10 bar (145 psi) Pneumatic outlet safety seal: 6 bar at 100 °C (87 psi at 212 °F)
