Specs at a glance
-
Max. measurement error
2%
-
Measuring range
0 to 56'550 m3/h
-
Medium temperature range
-20 to +120°C
(-4 to +248°F) -
Max. process pressure
0 to 16 bar abs
-
Wetted materials
1.4435/316L
Field of application

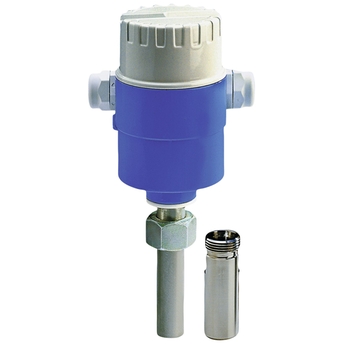

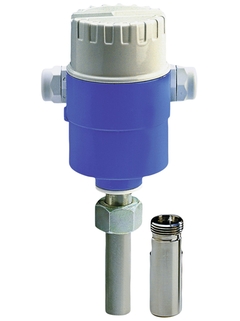

The cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for univesal and easy use and supports safe process- and plant operation.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Universally usable for all water applications in Utilities.
Device properties
Compact, space-saving design
Nominal diameter: DN 15 to 2000 (1/2 to 80")
Applicable for steel or plastic pipes
Switch point setting via rotary switch
Current output and relay output
ATEX, FM, CSA
Benefits
High plant availability – reliable flow information
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Process safety – device self-monitoring and reliable monitoring even with empty piping
Product safety – integrated testing to check correct functioning of the electronics
Easy operation – potentiometer setting of full-scale value
